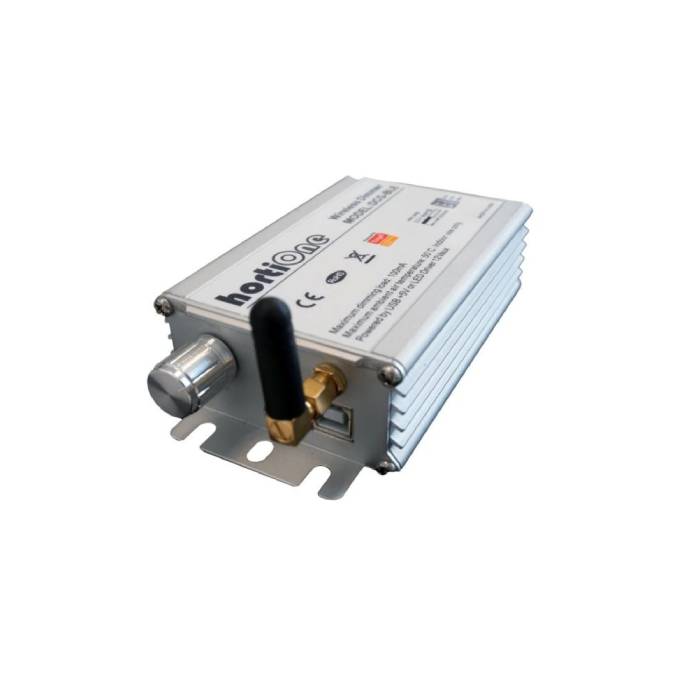

hortiONE Knob-bluetooth-dimmer
horitONE Dimmer Knob & Bluetooth can simultaneously control up to 3 LED drivers.
hortiONE 420 / 600 models are plug & play. The supply voltage comes either directly from a driver with 12V AUX. If this is not available, a USB charger with USB-A interface can be used. Thus, the dimmer is compatible with all 0-10V dimmable drivers.
Included are 3 cables for hortiONE LED. These can optionally be removed and all compatible drivers can be connected (DiY).
There are 3 function modes: 1. KNOB, 2. Bluetooth (Directly from smartphone to dimmer) with timing and Sunrise / Sunset function. 3. Bluetooth with gateway (Smart) so the dimmer can be controlled via a cloud and also connected to external sensors.
Key Features
Plug & Play for hortiONE 420 / 600 (Wire for hortione included)
Sunrise and sunset function including timer control
Compatible with all 0-10V dimmable LED driver
Can connect up to 3 LED driver
Knob-dimming (including Power Off)
Bluetooth direct connection without cloud (optional)
smart capability (including tuya cloud, optional)
Optional Power Supply via USB for LED driver without 12VAUX port.
Also, without any cloud Connection, multiple dimmers can be organized in groups and regulated simultaneously.
| Input | LED driver 12V AUX or powered by USB +5V |
| Output | 0-10 VDC |
| Maimum dimming load | 100mA |
| Channel | 1 |
| Number of connections | 3: Can connect up to 3 LED driver |
| MAx ambient temperature | 50°C |
| Warranty | 2 years |
| Dimensions | 130x68x34mm |
